The links base Vibes-stq
Specification base from Team Sigwal for tool Vibes [vbs]
2 types of specification:
2 types of specification:
- BS=need
- RS=realisation
Started (x1)
Verified (x2)
Référence
Dernière date
Nom
Description
État
Référence
Dernière date
26/06/2025
Nom
VibesWindow::processMessage() Axis Equal
Description
- w: width in axis unit [au]
- h: height in axis unit [au]
- m: width in pixel [px]
- n: height in pixel [px]
In other words, the height to width ratio must be same in axis unit [au] and in pixel [px].
État
🟢Started
Référence
Dernière date
05/06/2025
Nom
VibesDefaults::toPredefinedColorName()
Description
Hexadecimal and Short color name conversion to Qt Predefined color name
Svg color names are given as an information.
Svg color names are given as an information.
| Hexadecimal Name | Short Name | Predefined Name | Svg Name |
| none | transparent | ||
| #0000FF | b | blue | blue |
| #00FFFF | c | cyan | cyan |
| #00FF00 | g | green | lime |
| #FFFF00 | y | yellow | yellow |
| #FF0000 | r | red | red |
| #FF00FF | m | magenta | magenta |
| #FFFFFF | w | white | white |
| #000000 | k | black | black |
| #C0C0C0 | lightGray | silver | |
| #A0A0A4 | gray | rgb(160, 160, 164) | |
| #808080 | darkGray | gray | |
| #000080 | darkBlue | navy | |
| #008080 | darkCyan | teal | |
| #008000 | darkGreen | green | |
| #808000 | darkYellow | olive | |
| #800000 | darkRed | darkred | |
| #800080 | darkMagenta | darkmagenta |
État
🟣Verified
Référence
Dernière date
08/05/2025
Nom
Uninitialized group parameter use-case [godardma]
Description
Use-case from godardma in Comment [Github.com]

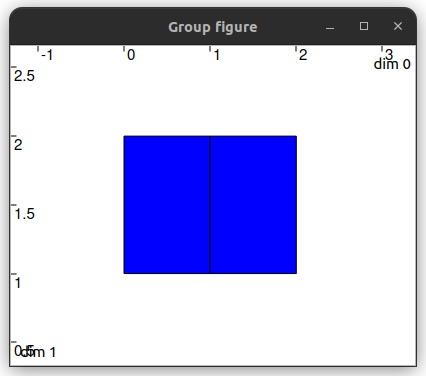

In this example the group "Group of boxes" has no style. The example displays something like :

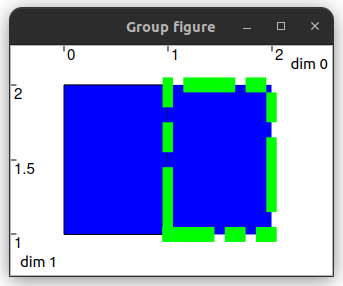

Now if for example I use the editor to change the Face Color to blue, all the other properties are also forced on the objects, we then get :

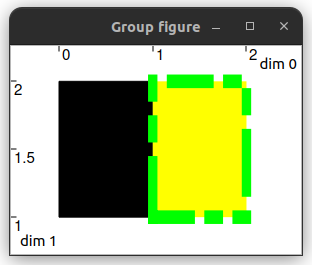

While with the old implementation the properties of the group were uninitialized to say that they are item specific. Modifying only the Face Color then gave :
#include "vibes.h"
int main()
{
vibes::newFigure("Group figure");
vibes::setFigureProperties(vibesParams("x",300,"y",40,"width",150,"height",150));
vibes::newGroup("Group of boxes");
vibes::drawBox(0,1,1,2,vibesParams("group","Group of boxes"));
vibes::drawBox(1,2,1,2,vibesParams("group","Group of boxes","EdgeColor","green","FaceColor","yellow","LineStyle","-..","LineWidth","0.1"));
return 0;
}
int main()
{
vibes::newFigure("Group figure");
vibes::setFigureProperties(vibesParams("x",300,"y",40,"width",150,"height",150));
vibes::newGroup("Group of boxes");
vibes::drawBox(0,1,1,2,vibesParams("group","Group of boxes"));
vibes::drawBox(1,2,1,2,vibesParams("group","Group of boxes","EdgeColor","green","FaceColor","yellow","LineStyle","-..","LineWidth","0.1"));
return 0;
}
In this example the group "Group of boxes" has no style. The example displays something like :
Now if for example I use the editor to change the Face Color to blue, all the other properties are also forced on the objects, we then get :
While with the old implementation the properties of the group were uninitialized to say that they are item specific. Modifying only the Face Color then gave :
État
🟣Verified
