Links base Vibes-ftq

The links base `Vibes-ftq`

Issues base of tool Vibes [vbs] from Team Sigwal
2 types of issue:

AF=evolution 📝
VR=anomaly 🐛

Submitted (x4)

Analysed (x2)

Started (x1)

Closed (x4)

Reference

Last date

File name

Description

State

Reference

VBS_VR_000008

Last date

07/11/2025

File name

Description

Blue points in figure « Points » in all_commands.cpp are not visible

vibes::drawPoints(x,y,vibesParams("FaceColor","blue","EdgeColor","darkBlue","Draggable",true));

Uninitialized "Radius" issue❔

State

🔴Submitted

Reference

VBS_VR_000007

Last date

23/10/2025

File name

Description

« axislabels » initialisation issue
cf "Megatest with boxes union" before and after axisdims modification:

Before	After

State

🔴Submitted

Reference

VBS_VR_000005

Last date

04/05/2025

File name

Description

Transparent color issue
Is there a link with Github issue Transparency #102❔

State

🔴Submitted

Reference

VBS_VR_000003

Last date

01/05/2025

File name

Description

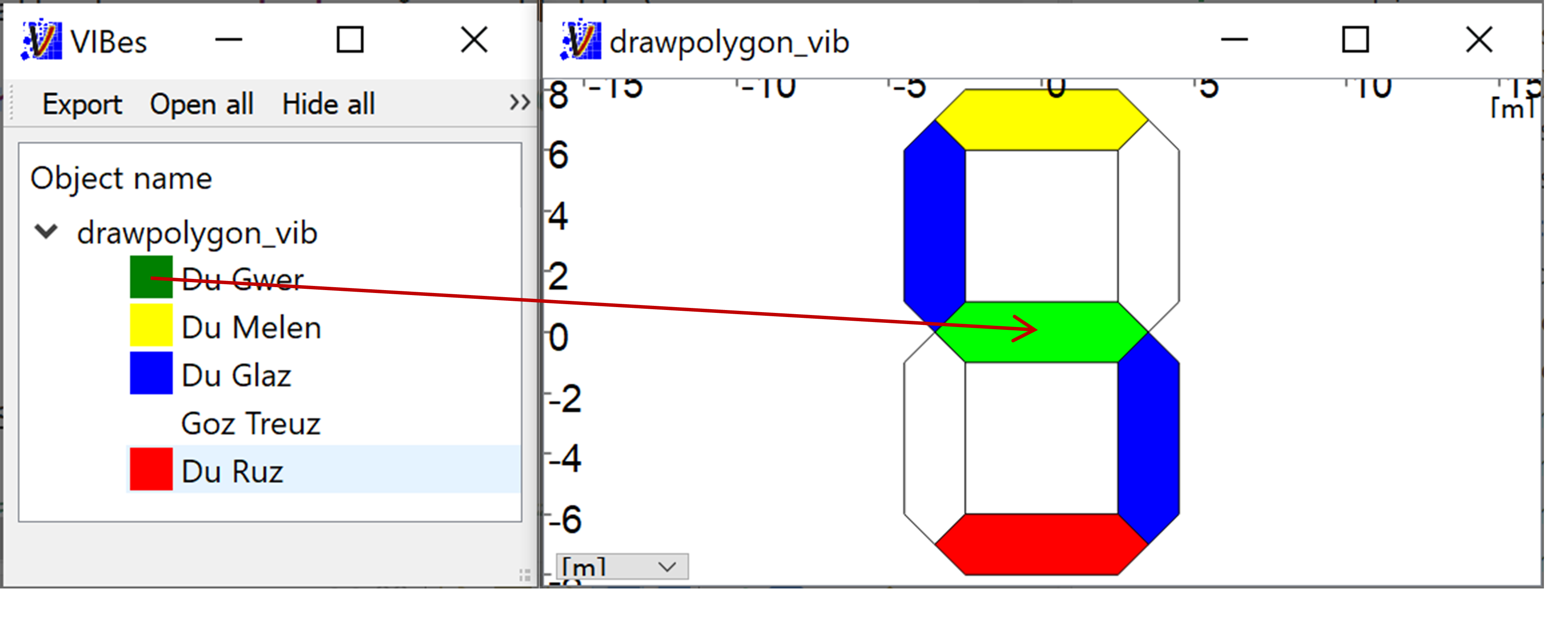

Group Color issue in TreeView under gwin64

State

🔴Submitted

Reference

VBS_VR_000006

Last date

23/10/2025

File name

vibesgraphicsitem.cpp

Description

The configuration "LineWidth", 0.1 is not working.
When the configuration "LineWidth", "0.1" is OK.
The configuration with a double parameter seems better.

vibesgraphicsitem.hpp to me modified on xx/xx/2025

VibesDefaults.parsePenWidth() to be deleted
interface of VibesDefaults.pen() to be modified

vibesgraphicsitem.cpp to be modified on xx/xx/2025

VibesGraphicsGroup::parseJsonGraphics() to be corrected
Use of VibesDefaults.pen() to be corrected

State

🟠Analysed

Reference

VBS_AF_000001

Last date

04/05/2025

File name

figure2d.h
figure2d.cpp

Description

Figure resize when AxisEqual is activated
Adaptation of Figure2D::resizeEvent() is to be done.

Linked issue: VBS_VR_000004vibeswindow.cpp
vibes.h
vibes.cpp

State

🟠Analysed

Reference

VBS_AF_000003

Last date

28/12/2025

File name

vibes.cpp
vibes.h
vibeswindow.cpp
all_commands.cpp

Description

New function in C++ API to configure the dimension to display on x and y-axis
Use of new parameter "axisdims" (similarity with parameter "axislabels").

Added vibes::axisDims() method on Oct 23.
Added processing of parameter "axisdims" in VibesWindow::processMessage() on Oct 23.
Verified in examples/all_commands.cpp

Before	After

Commit on Oct 23 ba4d111, pull request #148

New commit on Nov 22 2025 640034d

axisdims: first x-axis modification may fails if requested dimension is in use in y-axis, second modification in this case

New use-case on Nov 22 2025

#include "vibes.h"

int axisdims_vib_xpl(){

vibes::beginDrawing(); // <Initializes the Vibes "connection"
vibes::newFigure("axisdims_vib"); // <Creates a new Vibes figure;

int fs=16;
double length=8*((double)fs);

double rot=0, cx=length, cy=length;
vibes::drawText(cx, cy, "Bag Gwer", "[green]darkGreen",
shaqParams("fontSize", fs, "fontName", "Arial"));
cx=-length; cy= length; rot = 90;
vibes::drawMotorBoat(cx, cy, rot, length, "darkYellow[yellow]");
cx=-length; cy=-length; rot = 180;
vibes::drawAUV(cx, cy, rot, length, "darkBlue[blue]");
cx= length; cy=-length; rot = 270.0;
vibes::drawTank(cx, cy, rot, length, "darkRed[red]");

std::vector< std::vector<double> > polyg;
const int dn = 3; // point dimension
std::vector<double> point(dn);

point[0]= length; point[1]= length; point[2]= length; polyg.push_back(point);
point[0]=-length; point[1]= length; point[2]= length; polyg.push_back(point);
point[0]=-length; point[1]=-length; point[2]= length; polyg.push_back(point);
point[0]= length; point[1]=-length; point[2]=-length; polyg.push_back(point);
point[0]= length; point[1]= length; point[2]=-length; polyg.push_back(point);
point[0]=-length; point[1]= length; point[2]=-length; polyg.push_back(point);
vibes::drawLine(polyg, "lightGray");

vibes::axisAuto();
vibes::axisEqual("axisdims_vib");
vibes::saveImage("./axisdims_vib.svg");

std::vector<int> dims;
dims.push_back(0); dims.push_back(2); dims.push_back(1);
vibes::axisDims(dims);
vibes::axisAuto();
vibes::axisEqual("axisdims_vib");
vibes::saveImage("./axisdims_vib_0-2-1.svg");

dims[0]=1; dims[1]=0; dims[2]=2;
vibes::axisDims(dims);
/*vibes::axisAuto();
vibes::axisEqual("axisdims_vib");*/
vibes::saveImage("./axisdims_vib_1-0-2.svg");

dims[0]=1; dims[1]=2; dims[2]=0;
vibes::axisDims(dims);
/*vibes::axisAuto();
vibes::axisEqual("axisdims_vib");*/
vibes::saveImage("./axisdims_vib_1-2-0.svg");

dims[0]=2; dims[1]=0; dims[2]=1;
vibes::axisDims(dims);
/*vibes::axisAuto();
vibes::axisEqual("axisdims_vib");*/
vibes::saveImage("./axisdims_vib_2-0-1.svg");

dims[0]=2; dims[1]=1; dims[2]=0;
vibes::axisDims(dims);
/*vibes::axisAuto();
vibes::axisEqual("axisdims_vib");*/
vibes::saveImage("./axisdims_vib_2-1-0.svg");

// Back to initial graph
dims[0]=0; dims[1]=1; dims[2]=2;
vibes::axisDims(dims);
/*vibes::axisAuto();
vibes::axisEqual("axisdims_vib");*/
vibes::saveImage("./axisdims_vib_0-1-2.svg");

vibes::endDrawing(); // <Closes the Vibes "connection"

return 0;
}

axisdims_vib.svg
axisdims_vib_0-2-1.svg	axisdims_vib_1-0-2.svg red tank is lacking part of yellow boat is lacking no symmetry of text or vehicule with axis commutation❔
axisdims_vib_1-2-0.svg	axisdims_vib_2-0-1.svg
axisdims_vib_2-1-0.svg	axisdims_vib_0-1-2.svg part of yellow boat is lacking

New commit on Dec 28 25 to process axis on/off only 010b7c8
To do new PR dedicated to axisdims modification

State

🟢Started

Reference

VBS_AF_000002

Last date

05/01/2026

File name

vibes.cpp
vibes.h
all_commands.cpp

Description

New function in C++ API to hide/show axis.
Use of existing "showAxis" figure poperty.

Added vibes::axisOff() and vibes::axisOn() methods on Oct 23.
Verified in examples/all_commands.cpp

Before	After

Commit on Oct 23 ba4d111, pull request #148

Taken into account godardma comment on Nov 07

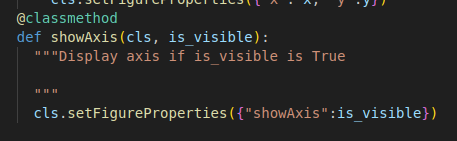

axisOff()/axisOn() are replaced by showAxis() method in accordance with Python API
showAxis is written as boolean cf example.py
vibes.showAxis(False)
{"action": "set", "properties": {"showAxis": false}, "figure": "test2"}
Added Value type bool
Added case vt_bool in Value::toJSONString()

Checked on Nov 07

all_commands.cpp
VIBES_TEST( vibes::showAxis(false) ); //[#148]
.vibes.json
{"action":"set", "figure":"drawText", "properties":{"showAxis":true}}

New commit on Dec 28 25 to process axis on/off only 010b7c8
PR#148 closed on Jan 05, 26

State

🟤Closed

Reference

VBS_VR_000004

Last date

07/07/2025

File name

vibeswindow.cpp
vibes.h
vibes.cpp

Description

Axis equal issue

With Vibes
Compared to reference

Corrected VibesWindow::processMessage() on May 03 2025

Solved on June 08 25 commit-927f2be

Added use-case on June 26

#include "vibes.h"

int drawpolygon_vib_xpl(){

vibes::beginDrawing(); // <Initializes the Vibes "connection"
vibes::newFigure("drawpolygon_vib"); // <Creates a new Vibes figure

vibes::newGroup("Du Gwer", /*"black[green]"*/"k[g]");
vibes::newGroup("Goz Treuz", "black[transparent]");
vibes::newGroup("Du Melen", /*"black[yellow]"*/"#000000[#FFFF00]");
vibes::newGroup("Du Glaz", "black[blue]");
vibes::newGroup("Du Ruz", "black[red]");

double e=1, xd=7*e, xd_2=xd/2, yd_2=e/*, yd=2.0*yd_2*/;

std::vector<double> x0, y0;
x0.push_back( xd_2); y0.push_back( 0);
x0.push_back( xd_2-yd_2); y0.push_back( yd_2);
x0.push_back(-(xd_2-yd_2)); y0.push_back( yd_2);
x0.push_back(- xd_2); y0.push_back( 0);
x0.push_back(-(xd_2-yd_2)); y0.push_back(-yd_2);
x0.push_back( xd_2-yd_2); y0.push_back(-yd_2);
x0.push_back( xd_2); y0.push_back( 0);
vibes::drawPolygon(x0, y0, vibes::Params("group","Du Gwer"));

std::vector<double> x1, y1;
x1.push_back( xd_2); y1.push_back( 0);
x1.push_back( xd_2+yd_2); y1.push_back( yd_2);
x1.push_back( xd_2+yd_2); y1.push_back( yd_2+(xd-2*e));
x1.push_back( xd_2); y1.push_back( yd_2+(xd-e));
x1.push_back( xd_2-yd_2); y1.push_back( yd_2+(xd-2*e));
x1.push_back( xd_2-yd_2); y1.push_back( yd_2);
x1.push_back( xd_2); y1.push_back( 0);
vibes::drawPolygon(x1, y1, vibes::Params("group","Goz Treuz"));

std::vector<double> x2, y2;
x2.push_back( xd_2); y2.push_back( 0 +yd_2+(xd-e));
x2.push_back( xd_2-yd_2); y2.push_back( yd_2+yd_2+(xd-e));
x2.push_back(-(xd_2-yd_2)); y2.push_back( yd_2+yd_2+(xd-e));
x2.push_back(- xd_2); y2.push_back( 0 +yd_2+(xd-e));
x2.push_back(-(xd_2-yd_2)); y2.push_back(-yd_2+yd_2+(xd-e));
x2.push_back( xd_2-yd_2); y2.push_back(-yd_2+yd_2+(xd-e));
x2.push_back( xd_2); y2.push_back( 0 +yd_2+(xd-e));
vibes::drawPolygon(x2, y2, vibes::Params("group","Du Melen"));

std::vector<double> x3, y3;
x3.push_back( xd_2 -xd); y3.push_back( 0);
x3.push_back( xd_2+yd_2-xd); y3.push_back( yd_2);
x3.push_back( xd_2+yd_2-xd); y3.push_back( yd_2+(xd-2*e));
x3.push_back( xd_2 -xd); y3.push_back( yd_2+(xd-e));
x3.push_back( xd_2-yd_2-xd); y3.push_back( yd_2+(xd-2*e));
x3.push_back( xd_2-yd_2-xd); y3.push_back( yd_2);
x3.push_back( xd_2 -xd); y3.push_back( 0);
vibes::drawPolygon(x3, y3, vibes::Params("group","Du Glaz"));

std::vector<double> x4, y4;
x4.push_back( xd_2 -xd); y4.push_back( 0 -xd);
x4.push_back( xd_2+yd_2-xd); y4.push_back( yd_2 -xd);
x4.push_back( xd_2+yd_2-xd); y4.push_back( yd_2+(xd-2*e)-xd);
x4.push_back( xd_2 -xd); y4.push_back( yd_2+(xd-e)-xd);
x4.push_back( xd_2-yd_2-xd); y4.push_back( yd_2+(xd-2*e)-xd);
x4.push_back( xd_2-yd_2-xd); y4.push_back( yd_2 -xd);
x4.push_back( xd_2 -xd); y4.push_back( 0 -xd);
vibes::drawPolygon(x4, y4, vibes::Params("group","Goz Treuz"));

std::vector<double> x5, y5;
x5.push_back( xd_2); y5.push_back( 0 -yd_2-(xd-e));
x5.push_back( xd_2-yd_2); y5.push_back( yd_2-yd_2-(xd-e));
x5.push_back(-(xd_2-yd_2)); y5.push_back( yd_2-yd_2-(xd-e));
x5.push_back(- xd_2); y5.push_back( 0 -yd_2-(xd-e));
x5.push_back(-(xd_2-yd_2)); y5.push_back(-yd_2-yd_2-(xd-e));
x5.push_back( xd_2-yd_2); y5.push_back(-yd_2-yd_2-(xd-e));
x5.push_back( xd_2); y5.push_back( 0 -yd_2-(xd-e));
vibes::drawPolygon(x5, y5, vibes::Params("group","Du Ruz"));

std::vector<double> x6, y6;
x6.push_back( xd_2 ); y6.push_back( 0 -xd);
x6.push_back( xd_2+yd_2); y6.push_back( yd_2 -xd);
x6.push_back( xd_2+yd_2); y6.push_back( yd_2+(xd-2*e)-xd);
x6.push_back( xd_2 ); y6.push_back( yd_2+(xd-e)-xd);
x6.push_back( xd_2-yd_2); y6.push_back( yd_2+(xd-2*e)-xd);
x6.push_back( xd_2-yd_2); y6.push_back( yd_2 -xd);
x6.push_back( xd_2 ); y6.push_back( 0 -xd);
vibes::drawPolygon(x6, y6, vibes::Params("group","Du Glaz"));

/*vibes::axisAuto("drawpolygon_vib");*/
vibes::axisEqual("drawpolygon_vib");
vibes::axisLabels("[m]", "[m]", "drawpolygon_vib");
vibes::saveImage("./drawpolygon_vib.svg");

vibes::endDrawing(); // <Closes the Vibes "connection"

return 0;
}

Verification on June 26 25

Added Method AxisEqual() method to C++ API (vibes.h, vibes.cpp) on July 02 25 commit d06fea6
Pull request #144 merged by godardma on July 07 25

Link to specification VBS_RS_000002VibesWindow::processMessage() Axis Equal

State

🟤Closed

Reference

VBS_VR_000002

Last date

04/06/2025

File name

vibesgraphicsitem.cpp
vibesgraphicsitem.h

Description

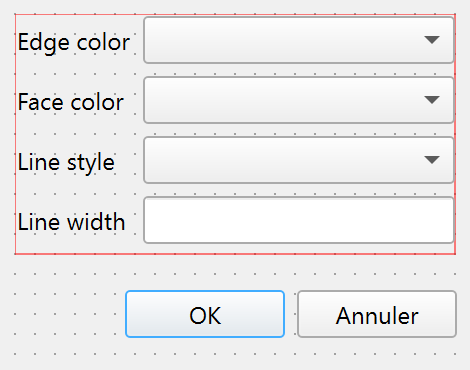

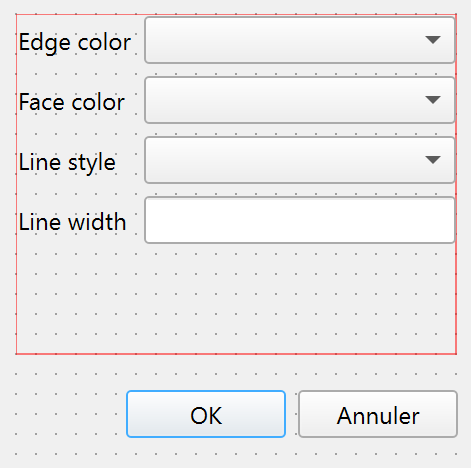

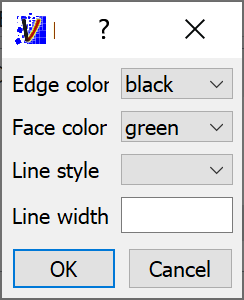

If not specified by user, PropertyEditDialog fields are not initialized

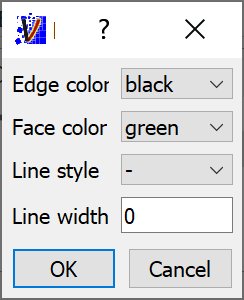

Correction on May 01 25

Modified VibesGraphicsItem::parseJson() to initialize or correct json parameters EdgeColor/FaceColor/LineStyle/LineWidth of a VibesGraphicsGroup before being used in PropertyEditDialog

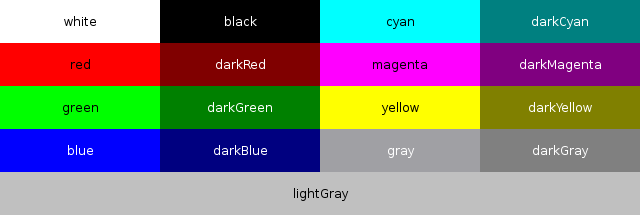

Added VibesDefaults::replaceColorName() to replace short color name

Test: newGroup("Du Gwer", /*"black[green]"*/"k[g]")

Edge color: black
Face color: green
No line style specified
No line width specified

Solved on May 02 25 commit e1af662 [Github]

Issue restarted on May 05 25

Predefined colors [Qt.io]

VibesDefaults::replaceColorName() is renamed VibesDefaults::toPredefinedColorName() according to specification VBS_RS_000001VibesDefaults::toPredefinedColorName() on May 08 25
Use-case from godardma is also respected VBS_BS_000001Uninitialized group parameter use-case [godardma] (no forced initialization of group parameter if not initialized)
New Commit 5d7ced5 [Github.com] on May 08 25
Pull request #142 merged and close by godardma on June 04 25

State

🟤Closed

Reference

VBS_VR_000001

Last date

04/06/2025

File name

propertyeditdialog.ui

Description

Height of PropertyEditDialog is too small under gwin64

Minor layout modification on May 01 25

Increased QDialog & QFormLayout height.
Deleted unused items in QLineEdit.

Solved on May 01 25 commit 3daed88 [Github]
Comment of godardma on May 5 25

«However I find that there is a bit too much blank space between the last input line (Line Width) and the buttons»
It seems that on linux the rendering is closer to the following (Qt Editor view):

Issue restarted on May 05 25, TODO: test the following layout on linux

Commit 0481f67 [Github.com] on May 05 25 to be tested on linux
On gwin64, the rendering is tight! (maybe a new issue to open)

Checked OK by godardma on May 06 25

Re-solved on May 08 25
Pull request #142 merged by godardma on June 04 25

State

🟤Closed

The links base Vibes-ftq

The links base `Vibes-ftq`
